Product Overview:

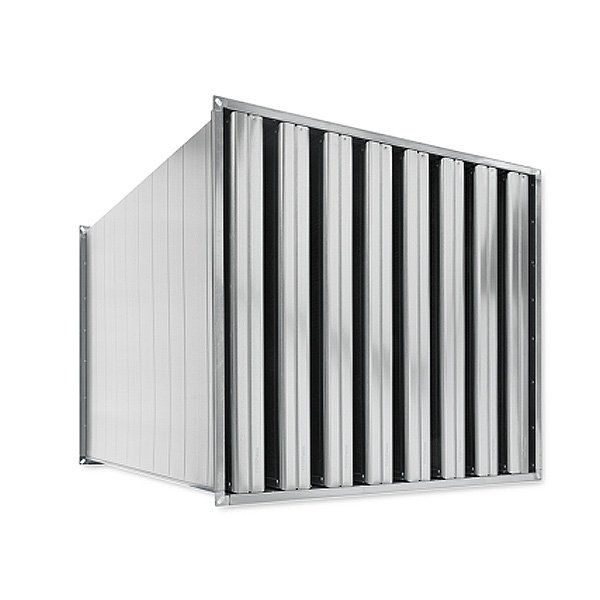

Chip muffler, suitable for air conditioning system

Absorption attenuation effect

Aerodynamic frame can save energy (radius>15mm)

Noise measured according to ISO7235

The use of biologically dissolved sound-absorbing materials is therefore very hygienic and safe

The sound-absorbing material glass fiber wool can be used as a protective layer to prevent erosion, and the airflow speed can reach up to 20m/s

Sound-absorbing material is non-combustible, refer to EN13501, fire rating A1

Standard size and middle size are available

In accordance with EU directive 94/9/EC (ATEX), use in areas 1, 2 and 21, 22

Working temperature up to 100℃

Optional equipment and accessories

Additional perforated plates protect sound-absorbing materials

Powder Coating

stainless steel

Salt water resistant aluminum structure (AIMg3)
